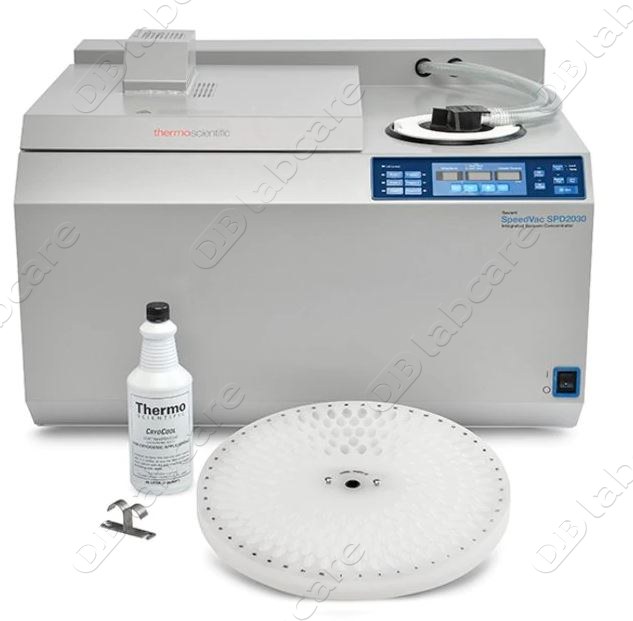

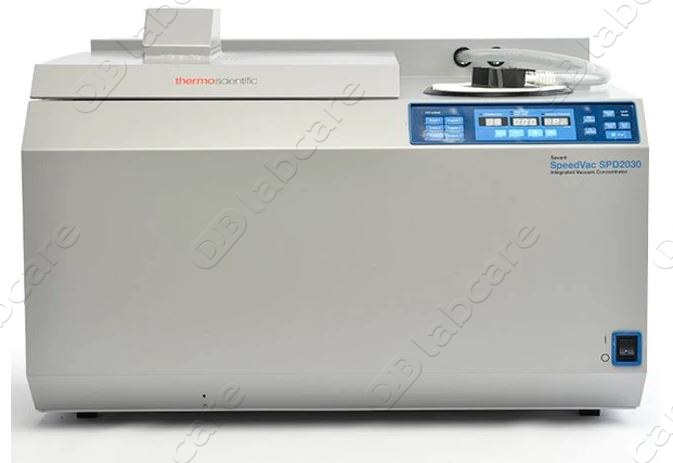

SpeedVac SPD1030 Integrated Vacuum Concentrator SPD1030A-230

Dry and concentrate aqueous or non-aggressive samples with speed and efficiency with Thermo Scientific™ Savant SPD1030 and SPD2030 Integrated SpeedVac™ Systems and kits. Fully integrated for fast installation, programming. Ideal for drying DNA/RNA precipitates, PCR samples, proteins, enzyme, HPLC fractions in plates or tubes in water/ethanol or isopropanol and other organic solvents. SpeedVac SPD1030 System is designed for medium capacity (i.e.,120 x 1.5 mL tubes, other formats). SpeedVac SPD2030 System allows higher capacity (i.e.,200 x 1.5 mL tubes, other formats).

Details

Model SPD1030
Temperature Range (Metric) Ambient (17-32°C) to 80°C
Chamber Material PTFE coated Aluminum
Includes Diaphragm pump, cold trap and vacuum gauge, RH40-11 rotor (40x1.5-2ml tube)
Max. Vacuum <10 Torr (13mbar, 1.3kPa)
Shipping Weight (English) 146 lbs
Shipping Weight (Metric) 86 kg
Description SpeedVac SPD1030 Integrated Vacuum Concentrator (rotor- order separately)
Certifications/Compliance UL Listed to US and Canadian requirements. CE marked
Electrical Requirements 230V/50Hz
Amperage 8 Amps
Weight (Metric) 66 kg
Capacity Accommodates up to 120 x 1.5ml tubes, 10 x 15ml tubes, 6 x 50ml tubes and 2 x micro well plates. Other rotor options available to accommodate a variety of tubes, vials and plates.
Dimensions (L x W x H) 25x26x16 in / 64x66x41cm

Features

Refrigeration
